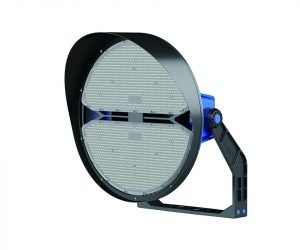

LED STADIUM LIGHT - SFA

  • Passed 65m/s anti-wind performance testing (equivalent to 17 winds)
  • AC100-277V/277-480V
  • Lighting protection, suitable for harsh outdoor enviroment
  • Solide State deign, all parts are individual, rugged and strong
  • Easy installation, 240°adjustable bracket
  • Narrow beam angle offer perfect solutions for wharf, airport and indoor stadium ect
  • ETL, CE certificate

    Parameter

    sfa led stadium lights specification mobile version 1
    sfa led stadium lights specification mobile version 2
    Specification
    Model No. Power Lumen CCT Input Voltage Beam Angle Operation Temp CRI Heat sink dimension
    XSY-SFA-300W 300W

    >150LM/W



    4000/5000/5700K



    AC100-277/480V

    60°/ 90°

    -20°to 45°



    70



    φ460*165MM

    XSY-SFA-450W 450W 15°/ 30°
    XSY-SFA-600W 600W 15°/ 40°
    XSY-SFA-800W 800W 15°/ 30°
    Contact

    SFA LED Stadium lights, better for sale.

    One of the biggest advantages of SFA stadium lights is that heat dissipation is very good. Designed with a high degree of protection up to IP65. The led SFA stadium lights from XSY Lighting manufacturer/supplier pass the 65m/s windproof performance test ( equivalent to 17 winds) to withstand the harsh outdoor environment. High lumen efficiency up to 150 lm/w with no flicker. Can meet the lighting requirements of high-definition television broadcasting to promote sports events. Green and environmental protection. Sports lighting fixtures are free of lead, mercury and other polluting elements.

    Dialux Design Case

    stadium light dialux design case 1
    stadium lights dialux design case 2
    Poles  6*6m
    Floodlight  120*SFA 600W LED
    Floodlight Type  XSY-SFA-150W-5000K-Ra70
    Field Measure  32*19.31m
    Eav 82 lx
    Emax/Emin 0.463 lx
    Ra >70
    ULR 13%

    Specification

    Installation

    SFA High-quality LED stadium lights are easy to install and easy to maintain, without loose screws and falling.

    SFA led STADIUM LIGHTs INSTALLATION

    SFA  Photometric Diagram

    SFA photometric diagram

    The fewer poles in the stadium, the more poles they need to reach in order to maintain uniformity. In these cases, we need to use a smaller beam angle, the beam can travel farther and maintain higher ground reach. Therefore, with SFA product, the entire football field can be illuminated brightly and evenly.

    SFA Drawing

    SFA drawing 300W、450W、600/800W

    LED SFA Stadium Light Applications

    Our stadiumlights can be used for outdoor and indoor lighting, offer lighting for soccer, football, baseball, hockey, basketball, tennis, lacrosse as well as for lighting the audience area, parking lots and sidewalk areas, etc.

    sfa led stadium lights application baseball stadium

    Baseball stadium

    sfa led stadium lights application basketball court

    Basketball court

    sfa led stadium lights application sports center

    Soccer field

    sfa led stadium lights application stadium

    Football stadium

    Contact us to get a free quotation!
