LED Wall Pack

LED wall pack can be installed around warehouses and educational institutions to increase appeal, and also ideal for illuminating paths and perimeters, adding a sense of security to pedestrians. We have two types of walls mountable wall pack for full cutoff and semi cut off with motion sensor, high output, low energy consumption to meet your needs. At the same time, we also have a quick-mounting bracket tool and a level in the wallpacks which plays a proofreading function, making the whole installation process smoother and faster. You may even forget that you have installed it.

LED Semi Cut-off Wall Pack

Easy install if with smart bracket, save labor cost. Choose from a variety of surface treatment options, such as black, bronze and white.

  • Power: 40W-60W-90W-120W
  • Voltage: AC100-277V/120-347V/277-480V
  • Light efficacy: 130LM/W
  • Intelligent control: Daylight/Photocell sensor
  • IP rating: IP65

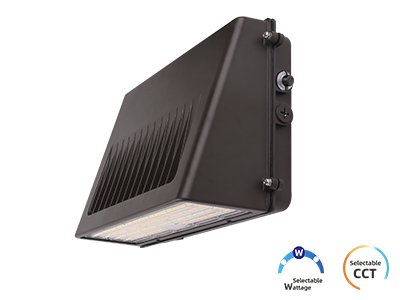

LED Full Cut-off Wall Pack

Easy install if with smart bracket, save labor cost. Choose from a variety of surface treatment options, such as black, bronze and white.

  • Power: 40W-60W-90W-120W
  • Voltage: AC100-277V/120-347V/277-480V
  • Light efficacy: 130LM/W
  • Intelligent control: Daylight/Photocell sensor
  • IP rating: IP65

Request a quote to gain best price.

LED Wall Pack: Definitive guide

What is wall pack?

Wall pack, as its name suggests, is a commercial&industrial lighting fixture for walls lighting that is primarily installed outside the building, such as houses, garages, warehouse, shop, etc., as well as building walkways and other places around it.
The traditional lamps are wallpacks fixture with a metal halide bulb, and the LED wall pack is divided into many types:

  • Traditional LED wall pack
    Similar to the standard design of a traditional wall pack, the LED wall packs come with a full glass lens. This lens enables a wider beam angle (120°) and the light is directed outwards and downwards, thus providing greater coverage around the parking lot and the building's exterior. The LED wall pack equivalent table is as follows:
LED Wall Pack Metal Halide equal
40w 5,200lumens 160w
60w 9,000lumens 250w
90w 13,500lumens 400w
120w 15,600lumens 1000w
  • LED cutoff wall pack
    The Semi cut off wall pack is the most common, it is lighting farther than any other type of wall pack, and the simultaneous outward and downward illumination provides greater coverage. Full cutoff led wall pack as the name suggests, in addition to the bottom of the fixtures, the LED wall-mounted illuminator is completely covered and the light is only illuminated downwards. The Cut-off wall pack is ideal for dark sky area to minimize lights pollution.
  • Dusk to dawn led wall pack
    LED wall pack lights with photocell Ideal for dusk to dawn applications around buildings, doorways, and loading. With the photocell sensor, it automatically lights up when sensing the ambient light dims. XSY lighting small watt wall packs are small in shape and can be used as security lights for entrances and building entrances. The large watt walpac can be used for commercial outdoor lighting.

Why Switching from a HID/HPS wall pack to LED?

LED VS HID

Are you still willing to endure the lumen bounce of HID/HPS? Lumen bounce will lose about 30% of the bulb lumens in the reflector and lamp. In fact, a large amount of metal halide energy is burned essentially as heat rather than as light. Although the cost of purchasing HID and HPS lamps is not high, the follow-up costs (electricity, maintenance, labor) will be 1-2 times that of LED lights fixtures.
What is unique about LED wall packs? First of all, it can be configured with a photocell sensor, which can improve the efficiency of use and reduce the cost. Secondly, it uses durable die-casting aluminum heat sink for outdoor high temperature, heavy rain, and other harsh environments, its operating temperature is -25 ° to 45 °. Finally, different color temperature options: 2700K, 3000K, 4000K, 5000K, 6500K, etc. apply to different scenes.

VS LED HID
CRI 70-95 >80
CCT from 2700K to 6500K from 3000K to 5000K
Startup time immediately 15-30 mins
Light Directionality 120° 360°
Light Emissions no IR and UV light
Heat Emissions produce very little heat produce heavy heat
Light effect 130lm/w 70-100lm/w
Light source bright, centralized bright, disperse
Lifespan >54,000hrs 15,000-25,000hrs
Environmental protection yes no
Flicker no yes
Energy consumption 20% 100%
Price high low
Intelligent mode photocell sensor no
Maintenance almost not frequent
Bulbs broke no yes
IP rated IP65 no
Warranty 5 years warranty 1-2 years warranty

Are you still willing to endure the lumen bounce of MH/HPS wallpacks? Lumen bounce will lose about 30% of the bulb lumens in the reflector and lamp. In fact, a large amount of metal halide energy is burned essentially as heat rather than as light. Although the cost of purchasing HID and HPS lamps is not high, the follow-up costs (electricity, maintenance, labor) will be 1-2 times that of LED lights.
What is unique about LED wall packs? First of all, it can be configured with a photocell sensor, which can improve the efficiency of use and reduce the cost. Secondly, it uses durable die-casting heat sink for outdoor high temperature, heavy rain, and other harsh environments, its operating temperature is -25 ° to 45 °. Finally, different color temperature options: 2700K, 3000K, 4000K, 5000K, 6500K, etc. apply to different scenes.

How to install wall pack with the quick mounting bracket?

1、Drill holes with percussion drill in line with the hole position from the wall. (note: cut off the power before mounting)
2、Use a hammer to drive the nylon expansion tube into the drilled hole on the wall.
3、Fix the bottom housing on the wall with a self-tapping screw.
4、Align the screws at the screw holes to fix the bracket on the lamp.
5、Wiring: AC/L match black; AC/N match white; PE/G match ground.
6、Mount the lamp on the bracket which you fix on the wall already after wiring finished.
7、Power-on and testing to check if the luminaire works normally, screw up at last if no problems. (note: keep the waterproof silicone ring at the original position.)
8、Finish installation.

wallpack mounted 1

Conclusion

Thanks to this great flexibility and high quality design, these led wall pack products are an excellent choice for almost any location, providing superior power and quality lighting every day. Not sure which option to choose? Just contact us. We are experienced lighting experts.
