UFO LED LIGHT - DIAMOND

  • 80W, 100W, 125W, 150W, 185W, 200W
  • AC120-277V / AC120-347V, IP66 & IP69K, 5 years warranty
  • 150lm/w or 190lm/w for optional, 200w=30,000lm or 38,000lm
  • Built-in Microwave sensor, 0-10V dimming
  • Bare aboard drivers closed to heat sinks directly, better for heat sink
  • Multifunctional, as warehouse lighting, food processing lighting, fresh food lighting
  • NSF, DLC, UL, ETL, CB, ENEC, SAA, CE certificate

    Parameter

    diamond parameter 1
    diamond parameter2
    Specification
    Model No Power Efficacy Power Efficacy Power Input Voltage CRI CCT Beam angle Size
    XSY-HBDU80W-XXKAA-YZT 80W





    150lm/w

    12000lm





    190lm/w

    15200lm





    AC120-277V
    AC120-347V







    >80







    3000K
    4000K
    5000K
    5700K







    120°







    Φ17.08"*7.56"

    XSY-HBDU100W-XXKAA-YZT 100W 15000lm 19000lm
    XSY-HBDU125W-XXKAA-YZT 125W 18750lm 23750lm
    XSY-HBDU150W-XXKAA-YZT 150W 22500lm 28000lm
    XSY-HBDU185W-XXKAA-YZT 185W 27750lm 35150lm
    XSY-HBDU200W-XXKAA-YZT 200W 30000lm 38000lm
    Contact

    Special UFO LED Light - Diamond Series

    Using diamond as the standard UFO LED light, its maximum benefit is 150lm/w and 190lm/w to meet the lighting of the plant, warehouse, retail store, gym, and other places. At the same time, the higher the lumen, the higher the brightness, and the total number of UFO LED lights in the entire application area will be less. This is undoubtedly saving you money. So what is the designated lighting? First, due to the smooth surface, IP66 & IP69K rating, no exposed screws, no glass material, UFO NSF high bay light can be used for food processing factory lighting. Second, as lighting for fresh food, it can also provide different color schemes on different food colors. Other styles of the led high bay: click here.

    NSF High Bay for Food Processing

    XSY has ten years of experience in the development and production of NSF high bay light for food processing. Diamond is currently a led high bay light for food factory that has obtained NSF certification. It meets the requirements of food processing lighting with a smooth appearance, no glass material, no screws exposed, and ip69 washable.

    high bay light for food factory

    NSF High Bay for Food Processing

    XSY has ten years of experience in the development and production of NSF high bay light for food processing. Diamond is currently a led high bay light for food factory that has obtained NSF certification. It meets the requirements of food processing lighting with a smooth appearance, no glass material, no screws exposed, and ip69 washable.

    high bay light for food factory
    ip66 rated ufo light

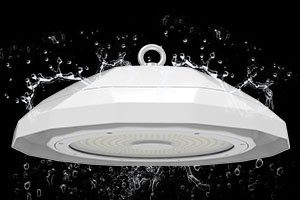

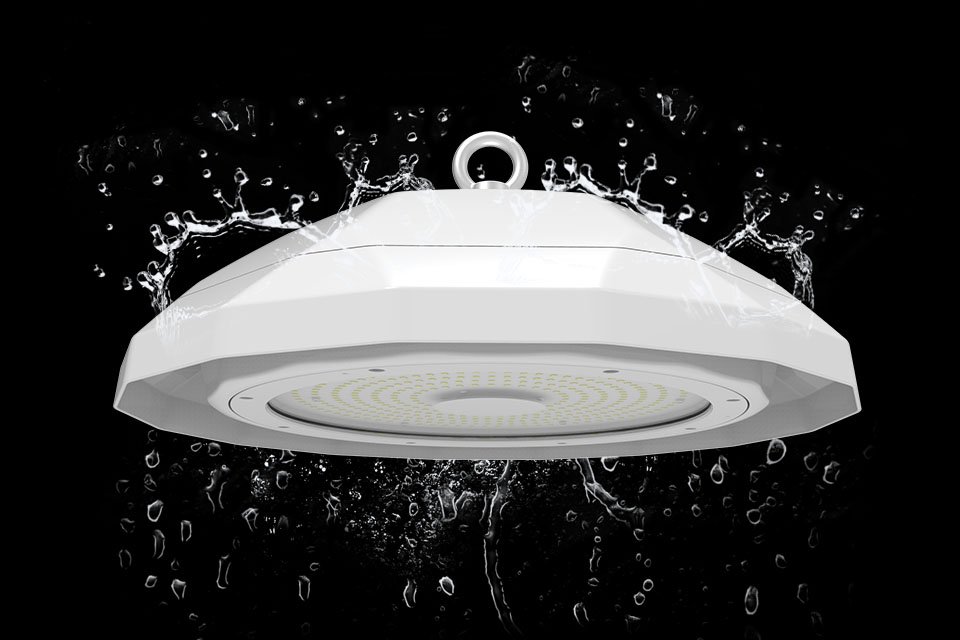

    IP66 & IP69K Diamond UFOLED

    When you wash the lights, don't worry that the water will penetrate into the lights fixture and cause damage. Because it has IP66 & IP69K waterproof and dustproof rated, especially suitable for places that need to keep the environment clean.

    ip66 rated ufo light

    IP66&IP69K Diamond UFOLED

    When you wash the lights, don't worry that the water will penetrate into the lights fixture and cause damage. Because it has IP66 & IP69K waterproof and dustproof rated, especially suitable for places that need to keep the environment clean.

    Smooth surface design

    Smooth highbay prevents the accumulation of substances such as food debris and dust. No need to clean often, saving labor. Despite the rinsing of the luminaire, the smooth surface prevents water from accumulating on it.

    food grade light

    Smooth surface design

    Smooth highbay prevents the accumulation of substances such as food debris and dust. No need to clean often, saving labor. Despite the rinsing of the luminaire, the smooth surface prevents water from accumulating on it.

    food grade light

    Customize your color schemes

    Depending on different foods, food color, and other factors, the different color schemes(spectrum) will be provided upon different applications. Fresh food LED lighting recipes can help make the difference in your fresh food departments by improving both the presentation and quality of your most perishable products.

    meat
    red ufo led light

    2200K&3500K for Meat

    blue ufo led light

    6500K for Fish

    fish
    bread
    black ufo led light

    2700K for Bread

    green ufo led light

    3000K for Vegetable&Fruit

    vegetables

    Customize your color schemes

    Depending on different foods, food color, and other factors, the different color schemes will be provided upon different applications. Fresh food LED lighting recipes can help make the difference in your fresh food departments by improving both the presentation and quality of your most perishable products.

    red ufo led light

    2200K&3500K for Meat

    meat
    black ufo led light

    2700K for Bread

    bread
    blue ufo led light

    6500K for Fish

    fish
    green ufo led light

    3000K for Vegetable&Fruit

    vegetables

    Microwave sensor

    The sensor installed in the middle of the lens not only avoids the weight unbalanced of the ufo light but also meets the requirements of food lighting. Why choose the microwave sensor? It is very accurate and can pass through most walls with a maximum range of up to 50 feet.

    built-in sensor ufoled

    Microwave sensor

    The sensor installed in the middle of the lens not only avoids the weight unbalanced of the ufo light but also meets the requirements of food lighting. Why choose the microwave sensor? It is very accurate and can pass through most walls with a maximum range of up to 50 feet.

    built-in sensor ufoled

    Guidance: How to install UFO light?

    O hook Installation

    o hook installation led ufo light
    1. Fix the ring to the lamp(rotate clockwise), tighten the screw
    2. Put the ring into the mounting hook
    3. Wired as required under safety protection

    Pendant Installation

    pendant installation ufo
    1. Wired as required under safety protection
    2. Rotate the lamp to mounting pipe(rotate clockwise)
    3. Tighten the screw

    Conclusion

    XSY manufacturer has been focusing on the development of the UFO LED light series, including Diamond(The product has the best price). HM lamps are an excellent choice for high-bay lighting when without LED lights. As the use time increases, traditional lamps begin to expose its shortcomings, slow start, high power consumption, ballast, short life, and poor heat dissipation. LED round high bay quickly becomes a replacement, without the disadvantages of HM. However, popularity also represents serious product assimilation, and there are thousands of LED UFO lights on the market. The diamond series is distinguished from ordinary ufo lights. It is environmentally friendly, no mercury, no ultraviolet light, energy saving, high luminous efficiency, long life, dimming, intelligent control, and has a wide range of applications, including retail stores, warehouses, plants, gyms, shop, supermarket, food processing factory, fresh food shelf, restaurant, workshops, car wash.

    Contact us to get free quote.
