LED High Bay Lighting & Warehouse Lighting

LED high bay lighting is available with dimmable, motion sensor, and emergency battery backup, which is cheap to purchase. Common applications include retail stores, warehouses, gyms, factory, and commercial buildings. Compared to traditional light fixtures, LED high bay lights designed for higher ceilings and larger areas. Round led high bays (suitable for replacing MH highbay) are available in two mount styles, o hook / u bracket, while led linear high bay (replaces T5HO and T8 highbays product) is chain / surface / suspend installations. They can provide up to 54,000 hours lifespan, 5-year warranty, 2700K - 5000K color temperature.

UFO High Bay-Sunrise 4

Ideal for use in foodservice and food processing locations.

  • Power: 50W-80W-100W-120W-150W
  • IP rating: IP65 & IP69K
  • Voltage: AC100-277V/277-480V
  • Light effect: >130LM/W
  • Beam angle: 45°/90°/120°
  • DLC premium approved

UFO High Bay-Star 4

Optical lens, symmetrical light distribution.

  • Power: 60W-80W-100W-150W-200W-250W
  • IP rating: IP65
  • Voltage: AC120-277V/120-347V/277-480V
  • Light efficacy: 150LM/W, 170LM/W
  • Beam angle: 60°/120°
  • DLC approved

UFO High Bay-Diamond

Special products for food processing & fresh food

  • Power: 80W-100W-125W-150W-185W-200W
  • IP rating: IP66&IP69K
  • Voltage: AC120-277V/AC120-347V
  • Light efficacy: 150LM/W, 190LM/W
  • Beam angle: 120°
  • DLC approved

UFO High Bay-Sunrise 9

LED replacement for 400w MH high bay

  • Power: 80W-100W-120W-150W-200W-250W-300W
  • IP rating: IP65
  • Voltage: AC100-277V/277-480V
  • Light efficacy: >140LM/W and >170LM/W
  • Beam angle: 45°/90°/120°
  • DLC approved

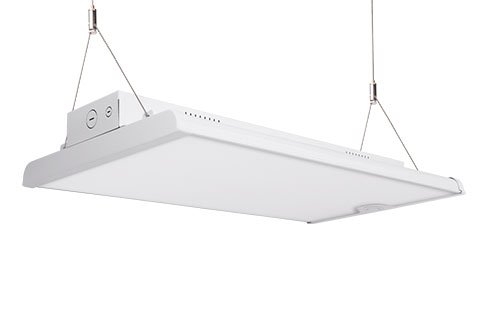

Type A Linear High Bay

High quality, energy-efficient, and affordable.

  • Power: 105W-165W-225W-300W
  • IP rating: IP65
  • Voltage: AC120-277V/277-480V
  • Light efficacy: >140LM/W
  • Beam angle: 120°
  • DLC approved

Type B Linear High Bay

Ideal for replacing MH or T8/T5 fluorescent fixtures.

  • Power: 105W-165W-225W-300W
  • IP rating: IP65
  • Voltage: AC100-277V/277-480V
  • Light efficacy: >140LM/W
  • Beam angle: 120°
  • DLC approved

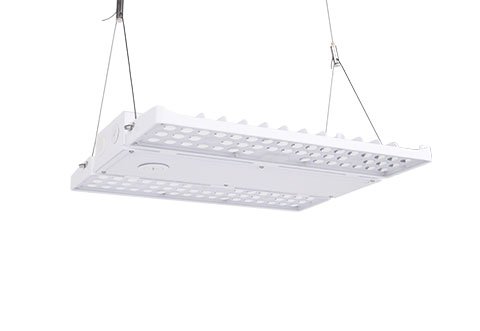

LED Linear High Bay

Multiple choices of optical lenses.

  • Power: 100W-150W-200W-250W-300W
  • IP rating: IP40
  • Voltage: AC100-277V
  • Light efficacy: 130LM/W
  • Beam angle: 30° 60° 90° Symmetric 40° asymmetric 18°/120°

UFO High Bay-Star 1

New graphene high-conductor material heat sink.

  • Power: 100W-150W-190W
  • IP rating: IP65
  • Voltage: AC100-277V
  • Light efficacy: 150LM/W
  • Beam angle: 60°/120°
  • DLC approved

Request a quote to high bay led lights price.

LED High Bay Lights - Definitive guide

What is high bay lighting?

High bay led lights to explain from its name that high bays are used to illuminate the high ceiling space. So how much height does it apply? The ceiling is typically from 20 feet to about 45 feet. Low bay lighting fixtures are often defined as lights for ceilings 20 ft from the floor. Learn more about the difference of high bay and low bay. Low shed ceiling are the most common type of ceiling that is common in most retail and public buildings. Because the high ceiling position requires more space to fill, the led high bay lamp fixtures are the powerful light source that brightens up a large area.

UFO vs Linear LED high bay fixtures

  • For the retrofit project, the ufo high bay product will ideal for replacing the MH lamp, because the bulb is round. And the led linear high bay can replace the T5HO and T8 highbay fixture or other conventional linear lights.
  • The round led high baylight has the 60°/90°/120° beam angle,which usually are installed in the open area. While LED linear high bay light only has a 120° beam angle, the mostly lighting space is passageways or aisles. However if the ceiling is higher than 35 foot, the UFO round style will be better choices.
  • Most UFO high bay on the market are IP65, IP66 or even IP69K rated to protect the fixture from the harsh environment. There is less selection of LED Linear High Bay that are designed in this way.

Where are high bay lights used?

Our XSY highbay lighting fixtures from 130lm/w to 170lm/w and wide watt to meet different applications, commercial and industrial area. More than 20 foot of space, such as big factories, workshops, warehouses, and even food processing factory. To meet this part of our customers, we have designed food bay light products with a smooth surface and easy to rinse. As technology advances, high bays are starting to be used for commercial area. They are suitable for shop/store, gyms, small indoor gymnasium, office, conference halls, event centers, and even airports.

Why traditional highbay light need to be replaced with LED lights?

What are the different types of High Bay Light fixture?
Before the new LEDs lights were born, the three most common conventional luminaires on the market were metal halides, high-pressure sodium, and fluorescent lights.

Even in the era when LEDs lights have been relatively mature, many people still choose these conventional lamps. Although these fixtures have their own unique advantages, high bay fixtures are superior to conventional lights in important aspects. If you are still using conventional luminaires, take a moment to look at the comparison of the following led and conventional luminaires.

  • High-bay LED vs MH Fixtures: MH are common in sports and warehouses and factorys applications. The biggest advantage of metal halide light is their high luminous efficiency. Since the spectrum of the metal halide lamp is a dense linear spectrum superimposed on the continuous spectrum, the color rendering index is particularly high, that is, the color reduction property is particularly good, up to 90%. In addition, the CCT of the MH lamp is as high as 5000K - 6000K. Under the same brightness condition, the higher the CCT, the brighter the human eye feels. What are the disadvantages? Can not be turned on again after extinguish (they take a long time to warm up, need to wait 15-20 minutes); high power consumption; need to be equipped with bulky ballast; life is shorter than LED; produce high temperature when igniting, need to wear a protective cover.
  • LED High bays Light Fixtures vs high-pressure sodium (HPS) lamp: When used high-pressure sodium lamp, it emits golden white light, which has the advantages of high luminous efficiency, low power consumption, long life, strong fogging ability and no attracting insects. Although the high-pressure sodium lights has many advantages, the color rendering property is poor (Ra = 30), and mounting is troublesome.
  • LED high bay fixtures vs Fluorescent: Old lamp is a gas discharge lamp that is the most widely used source for factory, commercial, and home. The advantages of using fluorescent light is high luminous efficiency; high lumens maintenance rate, low light decay; multiple color temperatures to choose from; long life, up to 12,000 hours; cheap sales pricing. There are many advantages but are many disadvantages similarly: the fluorescent lamp is large in size and can only be used for basic lighting; color rendering is general; dimming is difficult; stroboscopic; electromagnetic interference. LED linear high-bay, the perfect replacement for old one.

What are the three benefits of using LED high bay light?

  1. Low maintenance costs. Shop light fixtures have a longer life than traditional bulbs and are 5 to 50 times longer, which means fewer fixtures fail. By using these best products, the way it produces light is different from that produced by typical fuel or filament lighting. It can be explained that highbay light fixture does not burn out due to excessive temperature, thus reducing the number of repairs and replacements. Maintenance is a particularly important consideration in factory and warehouse lighting. LED high-bays product will require a higher mounting height and require special equipment for installation. Scaffolding, catwalks, and hydraulic lifts are often used to install or replace luminaires, so this also creates additional maintenance or equipment costs. Industrial & commercial high bays have a longer life than conventional luminaires, saving the cost of frequent replace or repairs.
  2. High energy efficiency. High wattage led can achieve the same output but require less energy than traditional fixtures. That's because it reasonably converts energy into light sources instead of emitting them as heat, creating a waste of energy. XSY power efficiency can reach more than 93%, which is definitely the higher the efficiency is better. As everyone knows, most traditional lamps are omnidirectional. This will cause a lot of light to be wasted on the ceiling or diluted. Therefore, it must use a device such as a cover to limit the beam angle. The led lights can eliminate the problem of energy waste, but also solve the phenomenon that the light is diluted. Our hi bay fixtures are equipped with a lens, which can set the angle required by the customer, 30, 60, 90, 120 °, etc. The cover assists the angle adjustment.
  3. High lighting quality. If you want to compare the color rendering index (CRI), the correlated color temperature (CCT), the high bays fixture can be better praise than most other traditional lamps. What is CRI? The high CRI has a high degree of revealing the original color of the objects. The description of the CCT profession is expressed by numerical values such as 2700K, 3000K, 4000K, 5000K, 6000K, etc. Most commercially available light source CCT values are usually in the range of 2700 to 6500K. For a better understanding, we can divide these values into warm light (2700k to 3000k) and cold/white light (4000k to 6500k). Excellent CRI values and CCT values allow LED bay lights to achieve better lighting quality during use.

Why do we use it?

With higher lumens output power, industrial & commercial high bay ideal for installation in high ceilings and lower utility costs in your location.
The high-bay fixture offers the best color temperature and color rendering index, and you can get CCT to suit your preferences, to suit a variety of color temperature ranges.
UFO led high bay light has less heat than the ones that are to be replaced. It is made of a finned base for better thermal transfer and provides high-quality illumination for a variety of spaces.
The LED light switch has a fast switching speed and does not cause flickering. Because of its stability and long life, we can reduce the time and money spent on maintaining and replacing lights. XSY lighting company provided high quality led highbay warehouse lights for sale business.



Conclusion

All in all, the led high bay lighting offers greater savings, rewards, and options than standard HID, also led lighting calculator is available. The price has been prepared for you, please contact us (led light manufacturer & supplier in China).
